Opening ports on a cloud image's iptables firewall

Every command on this page is the one tui-firewall v0.5.0 shows in its preview dialog, taken from its README and its source rather than written from memory. The screenshots are the tool’s own, rendered from --demo=iptables, a sample cloud image.

The symptom

You start a service on a fresh cloud instance. ss -tlnp shows it listening on 0.0.0.0:443. The provider’s console says the port is open in the security list or security group. And from outside, the connection fails at once with No route to host.

That error is the giveaway. Nothing is wrong with the route: the host itself answered with an ICMP host-prohibited message, which is what a --reject-with icmp-host-prohibited rule sends. The instance has a firewall of its own, and nothing told you.

Why the image does this

Many cloud images, Oracle’s Ubuntu images among them, ship without ufw or firewalld. Their firewall is a plain iptables ruleset, restored at boot by iptables-persistent from /etc/iptables/rules.v4 and rules.v6, and its INPUT chain allows established traffic, loopback, ICMP and ssh, and then ends in a catch-all:

-A INPUT -p tcp -m state --state NEW -m tcp --dport 22 -j ACCEPT
-A INPUT -j REJECT --reject-with icmp-host-prohibited

Fedora and RHEL with iptables-services have the same shape: the default /etc/sysconfig/iptables also ends INPUT with a REJECT.

This is a reasonable default. The trouble is how people usually add a rule. iptables -A INPUT appends, and an appended rule lands after the REJECT, where no packet ever reaches it. The command succeeds, the rule shows up in iptables -S, and the port stays closed. Then the next reboot restores the saved file, and even that rule is gone.

There are two firewalls on such an instance, and both have to allow the port: the provider’s network firewall in front of the host, which only the provider’s console or API changes, and this ruleset on the host. The rest of this page is about the second one.

tui-firewall picks iptables on its own

$ sudo apt install tui-firewall

The repository setup is on the install page. Run sudo tui-firewall, or run it as yourself with a warm sudo -v; changes escalate through sudo -n, which never prompts.

tui-firewall drives ufw, firewalld, iptables and nftables, and with backend = "auto" it decides which one this machine really runs. A running ufw or firewalld always wins, since both drive the kernel’s tables underneath. After those, it picks iptables when:

• the loader that restores the saved rules is active or enabled: netfilter-persistent, or the iptables unit of iptables-services;
• or the nft ruleset shows iptables-nft filter tables carrying rules of the operator’s own;
• or the legacy iptables tables do.

Docker’s plumbing alone does not count: a pure nftables host running docker stays on nftables. The selection line in the header says which of these reasons applied, and so do --check and --report. If you know better, --backend iptables skips the detection.

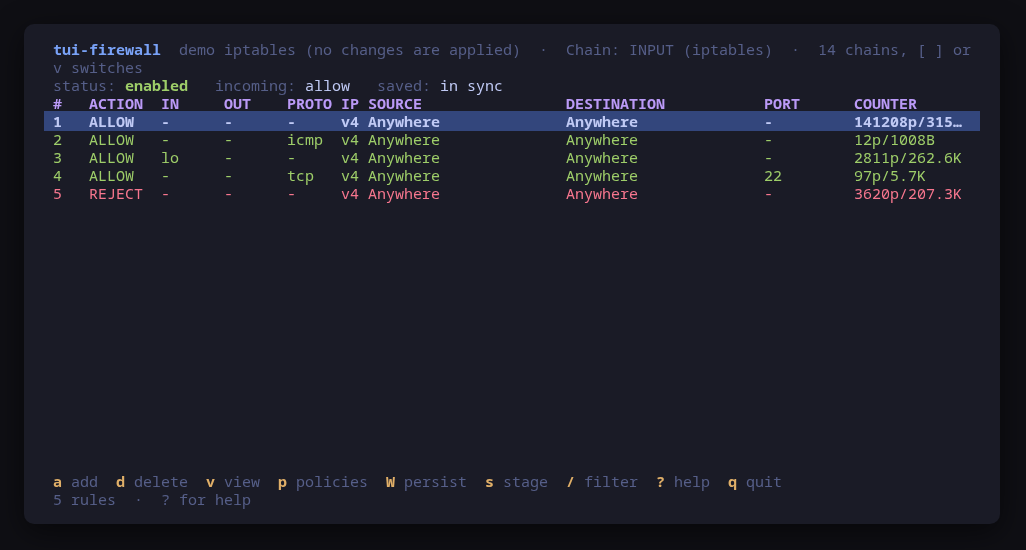

The screen shows one view per chain and family, INPUT (iptables) beside INPUT (ip6tables), read with iptables-save -c and ip6tables-save -c so each rule carries its counters. v picks a view, ] and [ step through them. The tool writes only to the built-in INPUT, FORWARD and OUTPUT chains of the filter table. Chains that docker, tailscaled, kube-proxy or fail2ban create are shown and left alone, because those daemons rebuild them every time they start, and so is any chain the image itself added.

Add the rule in front of the REJECT (a)

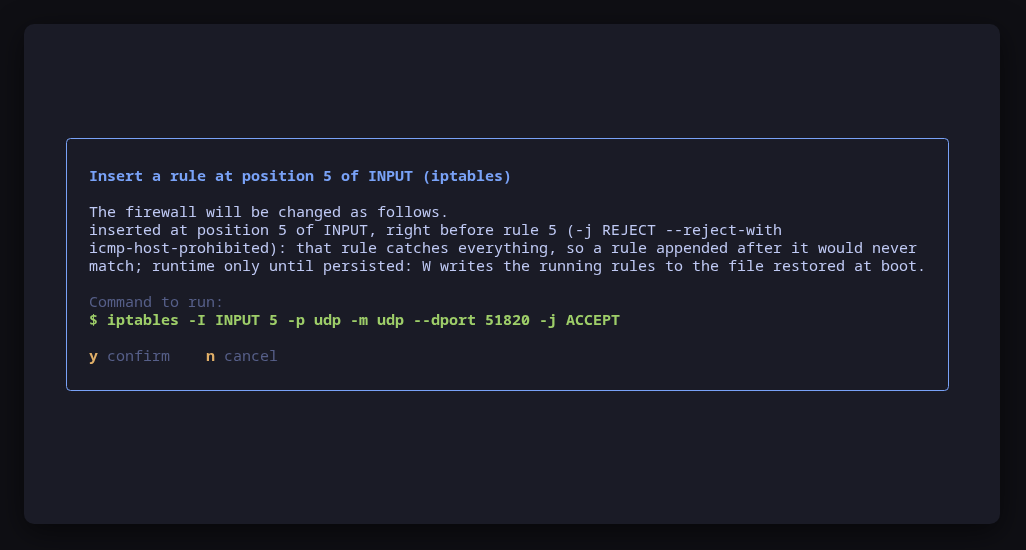

a opens the add form: action, protocol, port, source, destination, interface, comment. For a web service or a Headscale control plane, that is accept, tcp, 443. The tool does not append. A new rule goes in front of the catch-all REJECT or DROP, and the preview says where and why:

The README’s example is a WireGuard port on a chain whose REJECT is rule 5:

Insert a rule at position 5 of INPUT (iptables)
inserted at position 5 of INPUT, right before rule 5 (-j REJECT --reject-with
icmp-host-prohibited): that rule catches everything, so a rule appended after
it would never match

$ sudo -n iptables -I INPUT 5 -p udp -m udp --dport 51820 -j ACCEPT

For 443/tcp the command has the same shape, with the position of the REJECT on your chain:

iptables -I INPUT <position of the REJECT> -p tcp -m tcp --dport 443 -j ACCEPT

A chain with no catch-all gets the rule at its end, where the chain’s policy decides what nothing matched. You can give a position in the form, and it is honoured, unless it lands after the catch-all: that is refused with the reason, because it would be the same dead rule iptables -A makes.

Two practical notes:

• IPv6 is a separate chain. If the service is reached over IPv6, switch to INPUT (ip6tables) and add the rule there too; the preview then runs ip6tables.
• For a tailnet, add 41641/udp the same way. It is the port Tailscale nodes use to reach each other directly; without it they still connect, relayed.

d deletes the selected rule by its specification, iptables -D INPUT -p tcp -m tcp --dport 443 -j ACCEPT, not by its number, so a rule another daemon inserted in the meantime cannot shift the delete onto a neighbour.

Save it, or lose it at the next boot (W)

The insert changes the running kernel. The next boot restores the saved file, and the saved file does not have your rule. The header says which state you are in, saved: in sync or saved: differs: 1 line not saved (W), and the status line repeats it after every change.

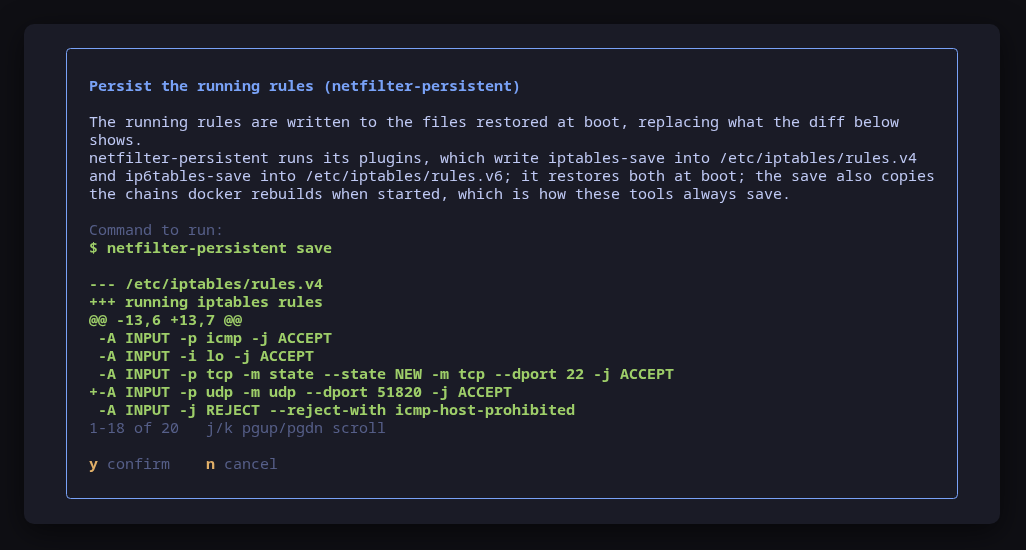

W persists, and its preview is the diff between the saved file and the running rules, so you see exactly what the next boot will load:

The command is the persistence layer’s own:

• Debian and Ubuntu: netfilter-persistent save, which writes /etc/iptables/rules.v4 and rules.v6;
• Fedora and RHEL with iptables-services: /usr/libexec/iptables/iptables.init save and ip6tables.init save, which write /etc/sysconfig/iptables and ip6tables. It is what service iptables save runs, without needing the service wrapper installed.

The comparison covers the filter table and leaves out the chains other daemons rebuild. A host where tailscaled added its ts-input chain after the last save still reads as in sync, because that chain is tailscaled’s to recreate, not yours to save.

Drift, before it bites

The saved state is read on every load, not only after a change of your own. On a machine where somebody ran iptables -I by hand last week and never saved, the header says saved: differs the moment you open the tool, and W shows you exactly which lines the next reboot would drop. That is the day to decide whether they should be saved or removed, rather than the morning after a kernel update, when the service is down and nobody remembers the rule.

Several changes at once, with a way back

Changing a firewall over the ssh session that the firewall protects is how a remote host gets locked out. s turns staging on: changes are collected instead of applied, and S reviews the pending set. The apply runs through iptables-restore --noflush, all or nothing per address family, and a snapshot of the filter table is taken right before it.

After the apply a timer starts. Press k to say you still have access, and the batch stays. If you do not, because the change just cut off the session you would press it from, the filter table is restored from the snapshot when the timer runs out, and you are back on the ruleset that worked. It is the iptables-apply idea, built into the same preview and confirm as everything else. Staged changes are running changes like any other: W still saves them.

For scripts

$ sudo tui-firewall --check | jq '.selection, .iptables'

The iptables block carries the variant (nf_tables or legacy), the writable chains and where a new rule would land in each, the ports INPUT accepts ahead of its catch-all, any accept that sits after it and never matches, and the persistence layer with the drift between running and saved rules. An accept after the catch-all is worth a script’s attention: it is the iptables -A mistake, found on a machine you did not set up.

All of it runs against a sample cloud image, with nothing touched:

$ tui-firewall --demo=iptables
